Introduction

Continuous online monitoring and control for any aqueous solution to accommodate a range of sensors

Description

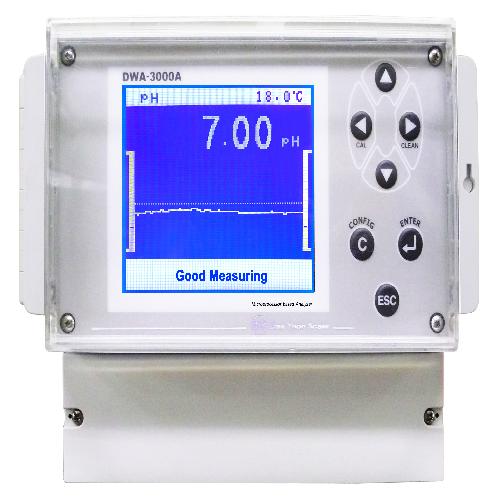

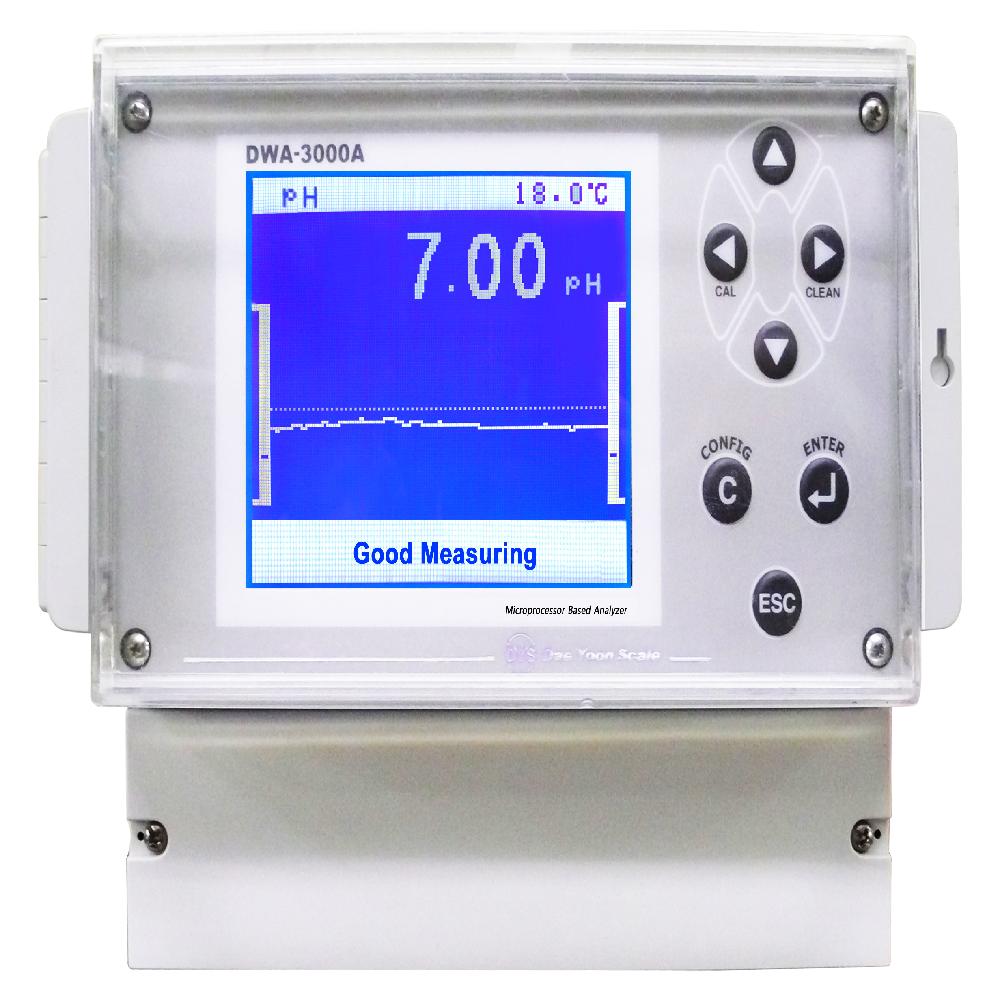

The pH analyzer (DWA-3000A-pH) Wall mount microprocessor has been built and designed to provide years
of trouble free operation.

It is designedt mounted on a wall and is designed to be connected and calibrated to various levels of pH.

This pH analyzer features fully automatic temperature compensation (Displayed on screen) and accuracy to within 0.02pH of full scale.

Control
When control of pH is required, this analyzer features a high and low relay output contact,
or 4-20mA output which can be utilised to control both alkaline and/or acid dosing control.

Alarms
When indication of alarms is required the DWA-3000A has a high/high alarm and a low/low alarm which can be conneted to warning
lights or audible alarms to ensure an operator checks on the plant.

Electrode Cleaning Output
The added feature that this analyzer has, compared to others in the market is a electrode clean relay output,
which can be utilised to control a solenoid for air or water jet cleaning of the electrode surface.
(Especially useful in waste / industrial water plants)

Features
*Real Time Trend Analysis Functon
*Microprocessor based Digital Program Controller
*Isolated DC (4-20/0-20/0-24 mA) Output Transmission
*Automatic Cleaning Control Function
*Low-cost For User Satisfaction
*CE Mark Accredited

Specifiactions
Model : DWA-3000A-pH
Channel : Single Channel
Range : 0~14 pH (Resolution 0.01)
Power : AC 110/240v 50/60Hz
Accuracy : 0.02 pH of Full Scale
Response Time : 15 Seconds (90%)
Analog Output : Isolated 4~20mA DC
Digital Output : RS-232C, RS-485
Relay Output : High,High / High / Low / Low,Low / Clean
Relay Voltage : Volt free 5A @ 24VDC / 5A @ 240VAC
Display : Trend Graph Backlit LCD
Humidity : Max 90% (Non Condensing)
IP Rating : IP65
Size : 240mm(W) x 180mm(H) x 115(D)
Installation : Wall or Pipe Stanchion
