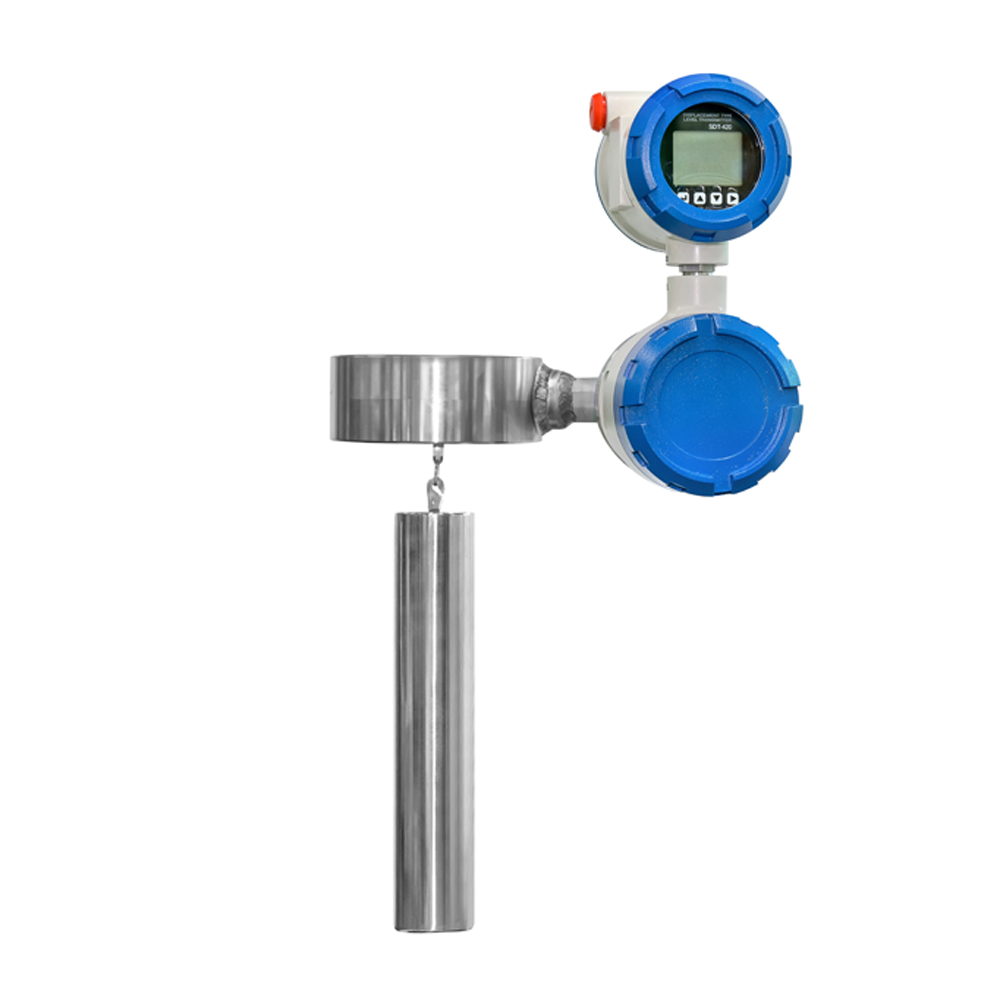

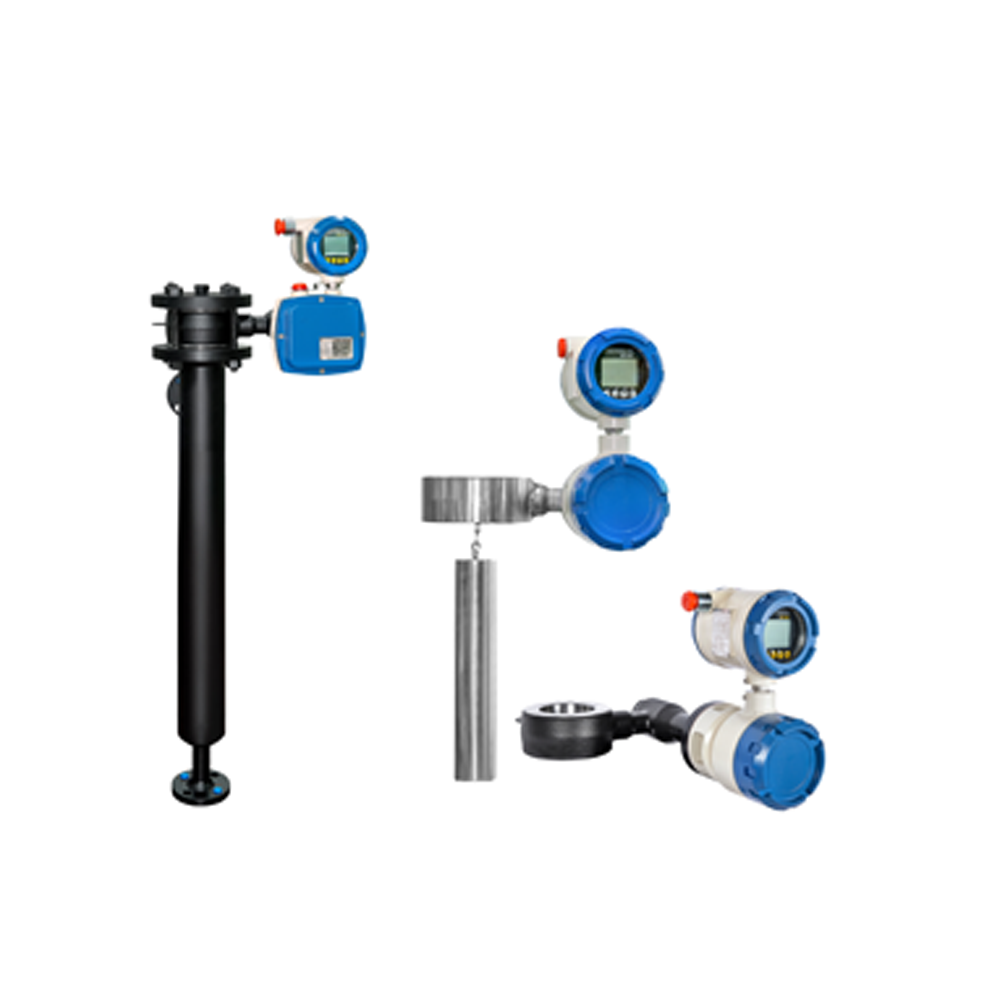

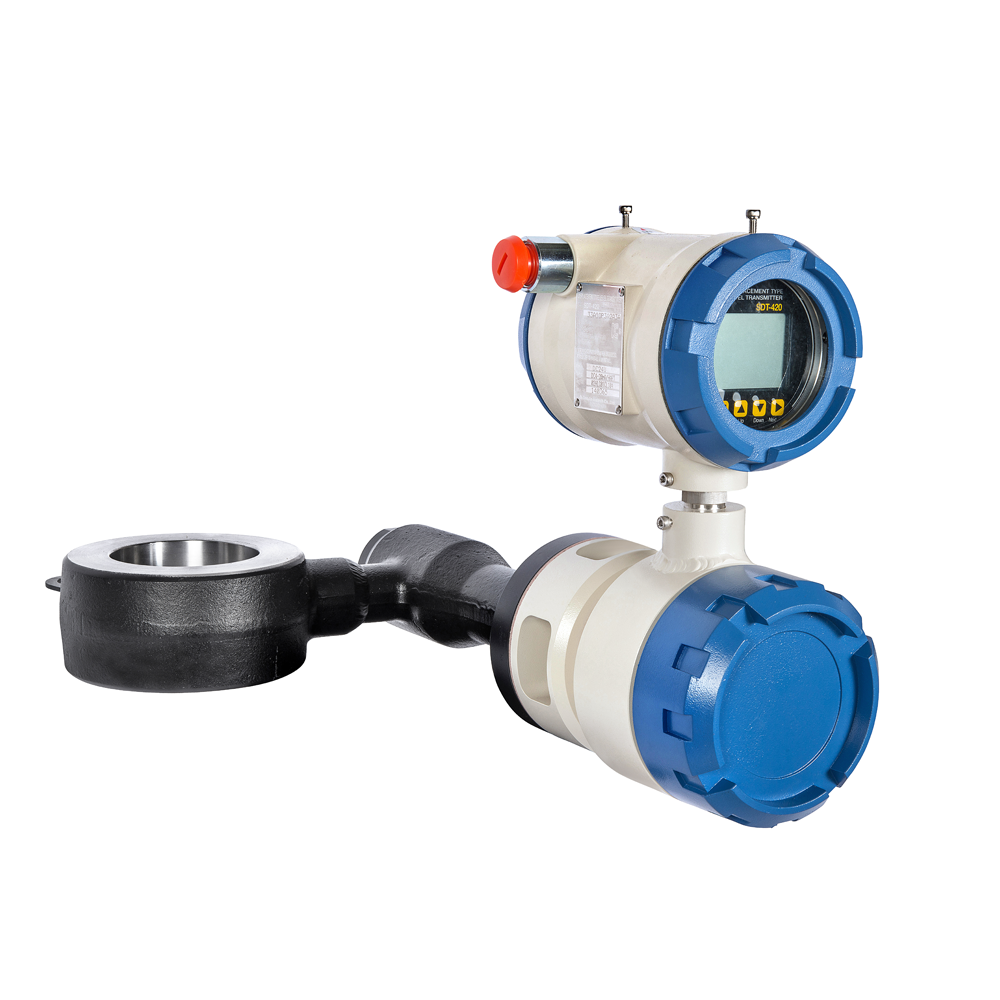

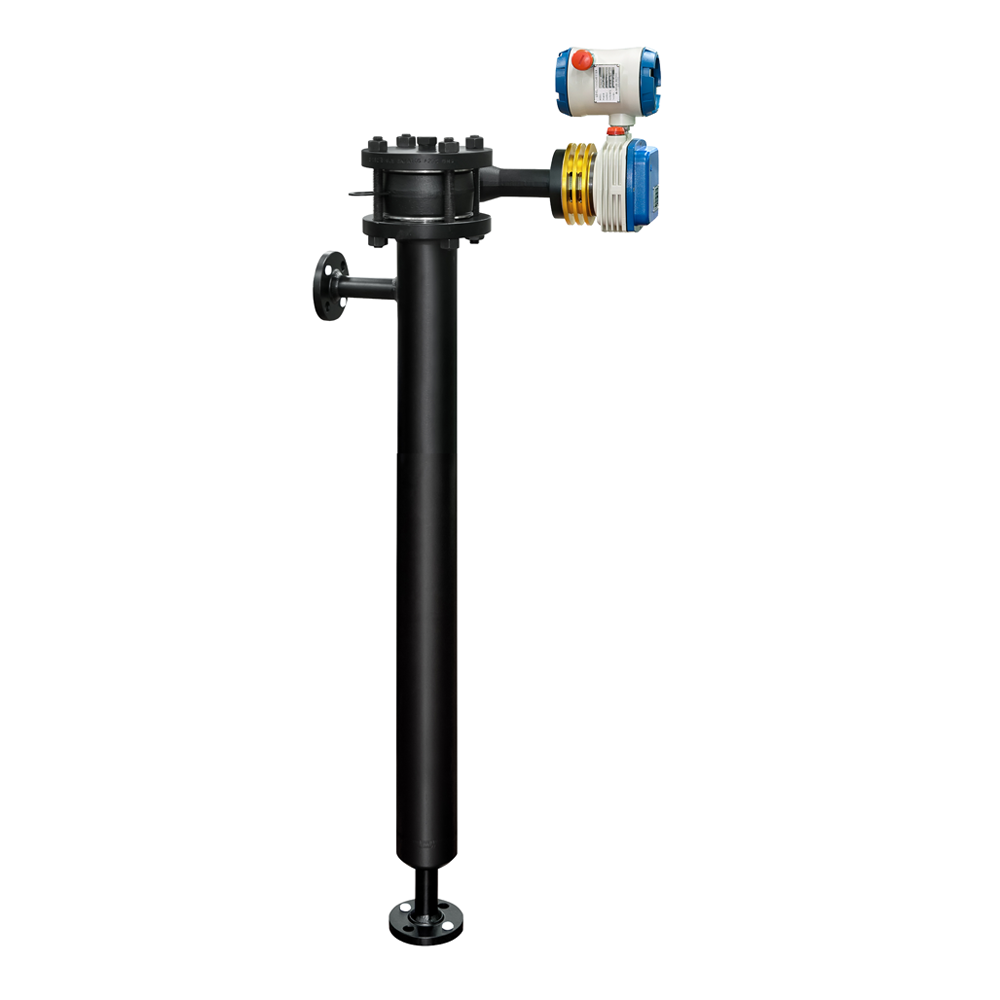

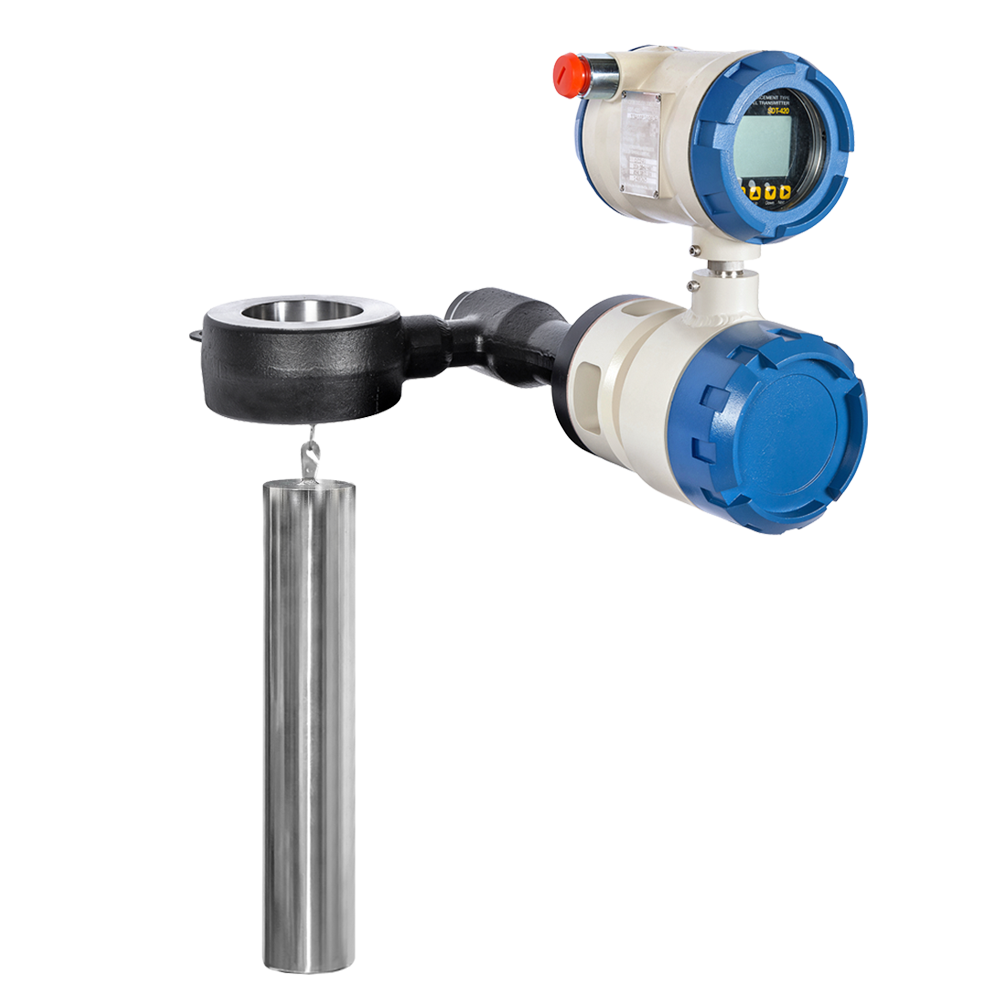

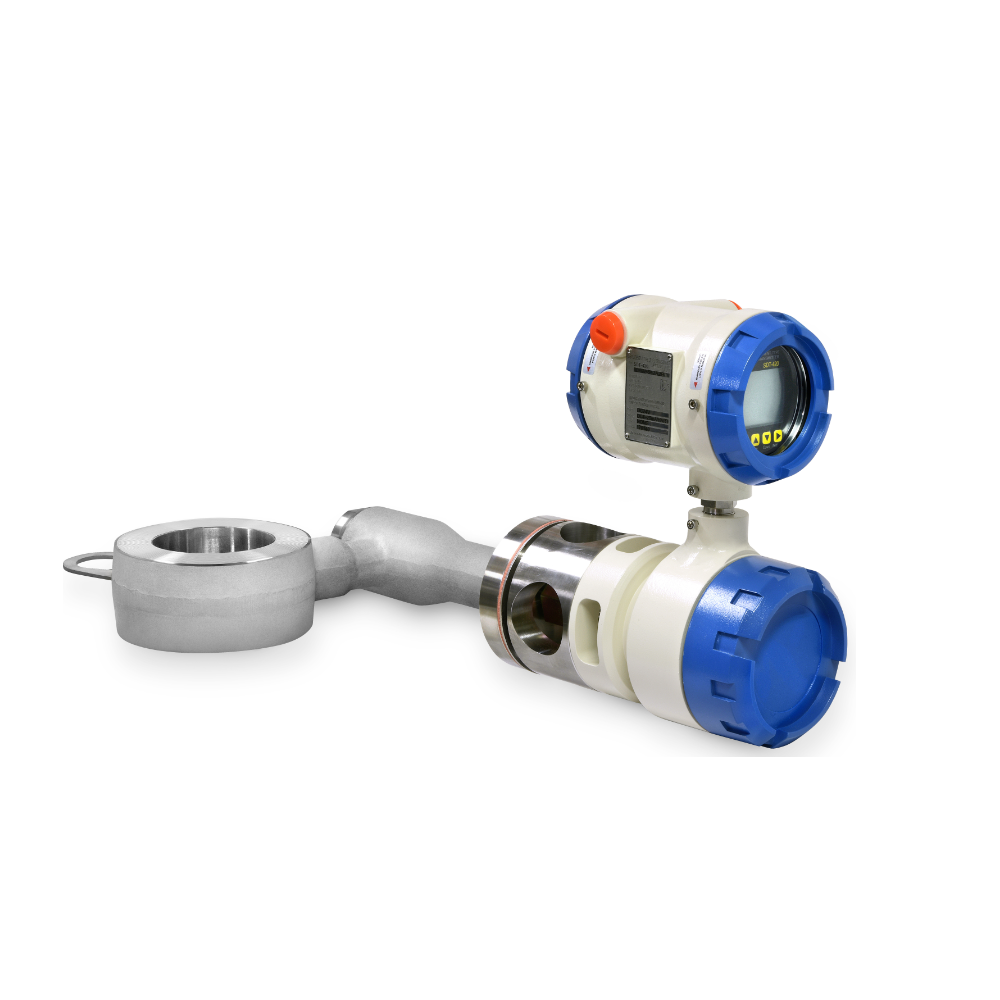

DISPLACEMENT TYPE LEVEL TRANSMITTER [SDT-420]
Product descriptions
 • For the safe and efficient operation of various high temperature and high pressure steam drums, boilers and reactors used in Firepower Plants, Glass & Cement Plants, Petrochemical Plants and Steel & Paper manufacturing Plants, close monitoring and controlling of the interface level between water and vapor is very important. As these steam drums are working under extremely high temperature and pressure conditions, the instruments related to measuring and controlling the level must be defect-free. Otherwise, minor defects may bring serious damages to the other equipments or financial losses.
 • However the industry had relied on the instruments like Sight Glass or Float Type Level switches and had experienced many troubles so the demand for the alternative instruments had increased. To respond to this market demand, Seojin committed to the development of Displacement Type Level Transmitter based on its experiences and know-how, and finally has succeeded in launching this model to the market. Our Displacement Type Level Transmitter can assure the reliable operation even under the harsh circumstance like 200㎏f/㎠ and 450℃.
 • This Displacement Type Level Transmitter is designed for measuring not only the level of on liquid but also the interface level between two different liquids. Its operation is based on the buoyancy principles of Archimedes and it supports remote monitoring by the configuration with PC (With SIEMENS PDM Software) or Universal Hand Held Terminal (HART Field Communicator). This instrument also supports the conventional way of operation and control so the users can operate and control it using keypads at the field.
Product Specifications
System Design Measurement Principle Buoyancy-continuous displacement utilizing a precision torsion bar
Measurement Medium Liquid (Max. Viscosity : 1500 cP)
Input Measurement Variable Level, Determined by load cell affected by buoyancy force changes on continuous displacer
Measuring Range Up to 5,000mm based on displacer length (Consult factory for longer ranges)
Output Type  4 to 20mA with HART communication 3.75 to 22.5mA useable
LCD Window Display Bar graph, mm, inch, %, mA
Resolution  Analog : 0.01mA
Loop Resistance  240Ω @24V DC
Diagnostic Alarm 3.3, 22mA or HOLD selectable
Damping  Adjustable 1-30 seconds
Sampling Rate Transmitter 10 times per second
User Interface Keypad 4-button menu-driven data entry and system security
Indication  Bar graph, HART Communication, 2 line x 4-charator LCD display
Power Measured at Instrument Terminals 15-30V DC HART
This device is operated under only functional isolation
Current  Minimum 3.75mA, Maximum 22.5mA
        This device provides only functional isolation
Housing Material  Aluminum alloy ADC12 (KS;ALDC8, ASTM;383), 316LSS
Cable Entry 1/2”PF(std.)
Ingress Protection IP67 (NEMA 4)
Chamber Materials  Carbon steel, 304/316/316L Stainless Steel
  Wetted Parts 316/316L and Inconel, Hastelloy-C (Torque Tube)
  Process Connections
Tank Top : 3”, 4” ANSI Flange
Chambered : 1”, 1-1.2”, 2”S/W, Flange
Process Condition Process Temperature Range -20 to 450℃
  Process Pressure Range 200kgf/㎠@25℃
Environment Electrics Operating Temp -20 to 80℃
  Humidity   0-99%, Non-condensing
  Electromagnetic Compatibility CE Requirement EN61000-6-2-2005, EN61000-6-4-2007
  Natural Frequency 42.7 (X axis), 109.6(Y axis), 127.4(Z axis)
Level Performance Linearity  ± 0.5% of full span
  Accuracy ± 0.5% of full span (Option : ± 0.25% of F.S)
  Repeatability  ± 0.05% of full span
  Hysteresis  ± 0.05% of full span
  Warm-up Time < 3 seconds
  Certificate  ATEX, KC, CE, KOSHA, KTL, KEPIC
Warranty Period 1year
