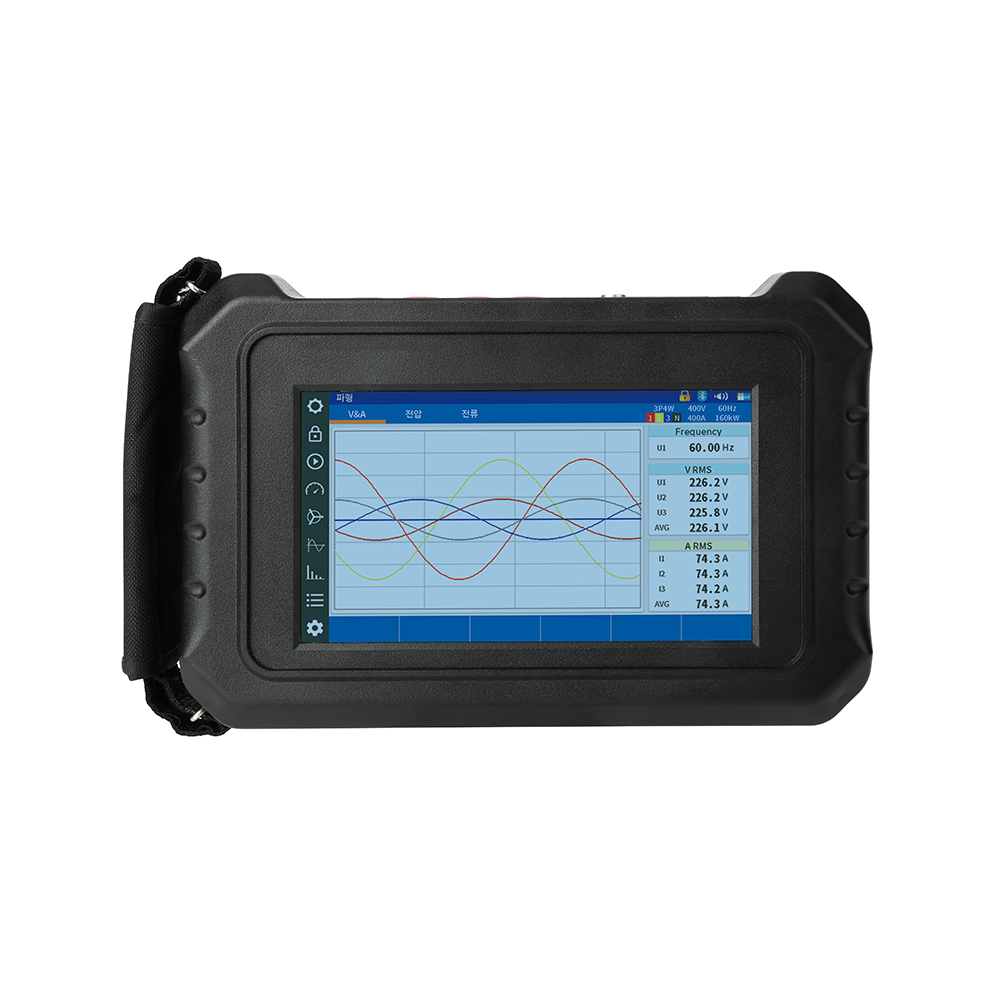

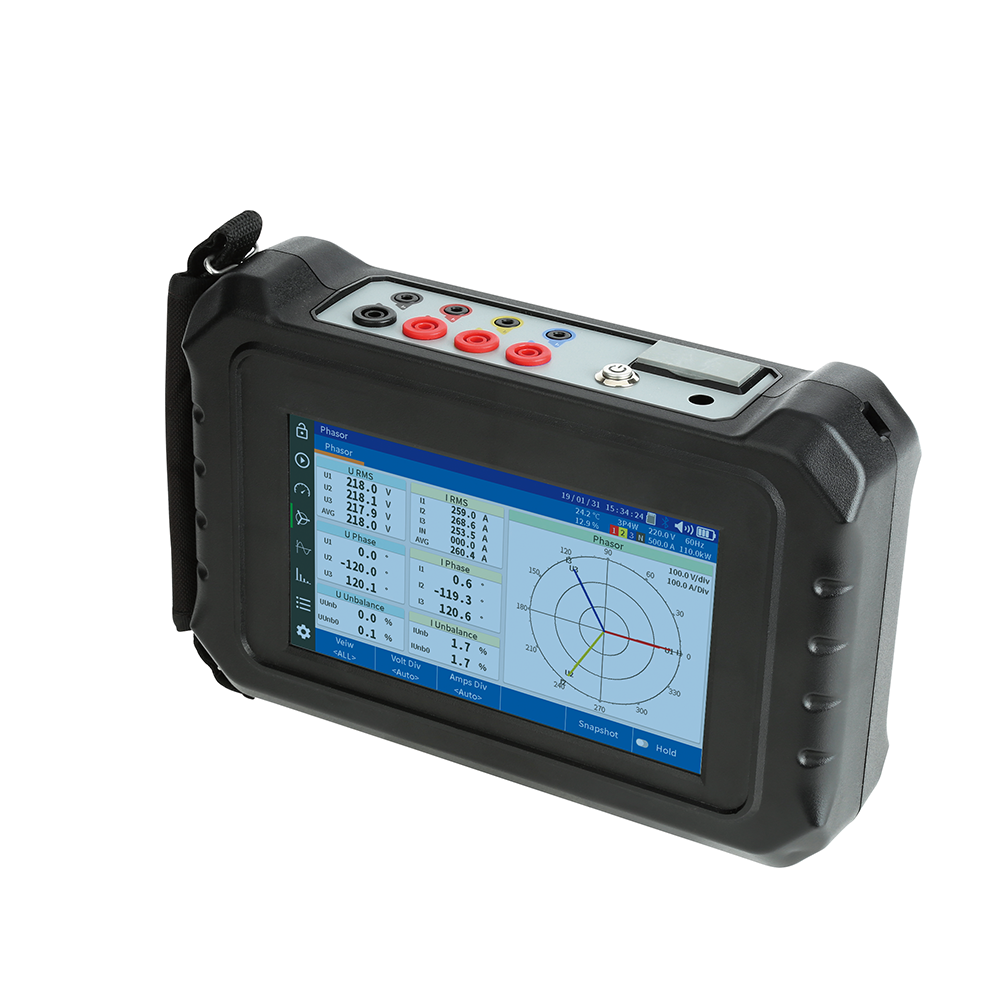

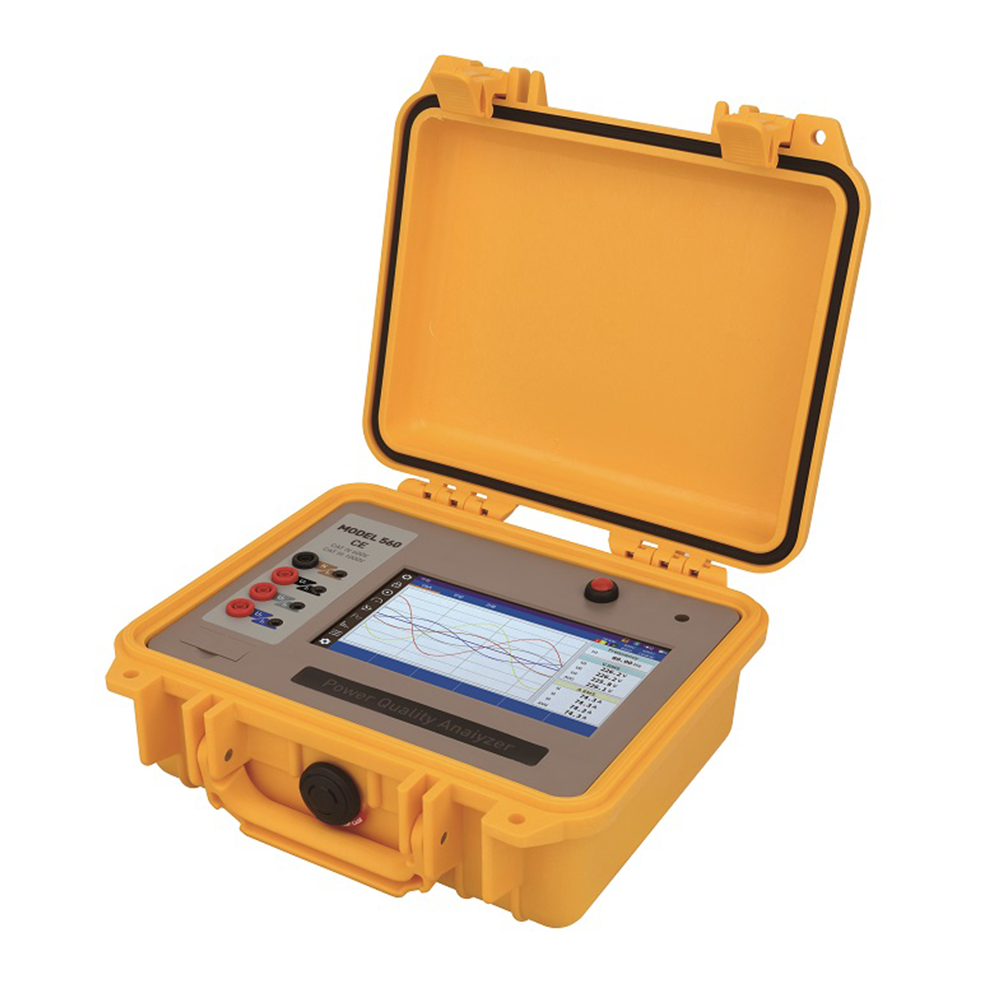

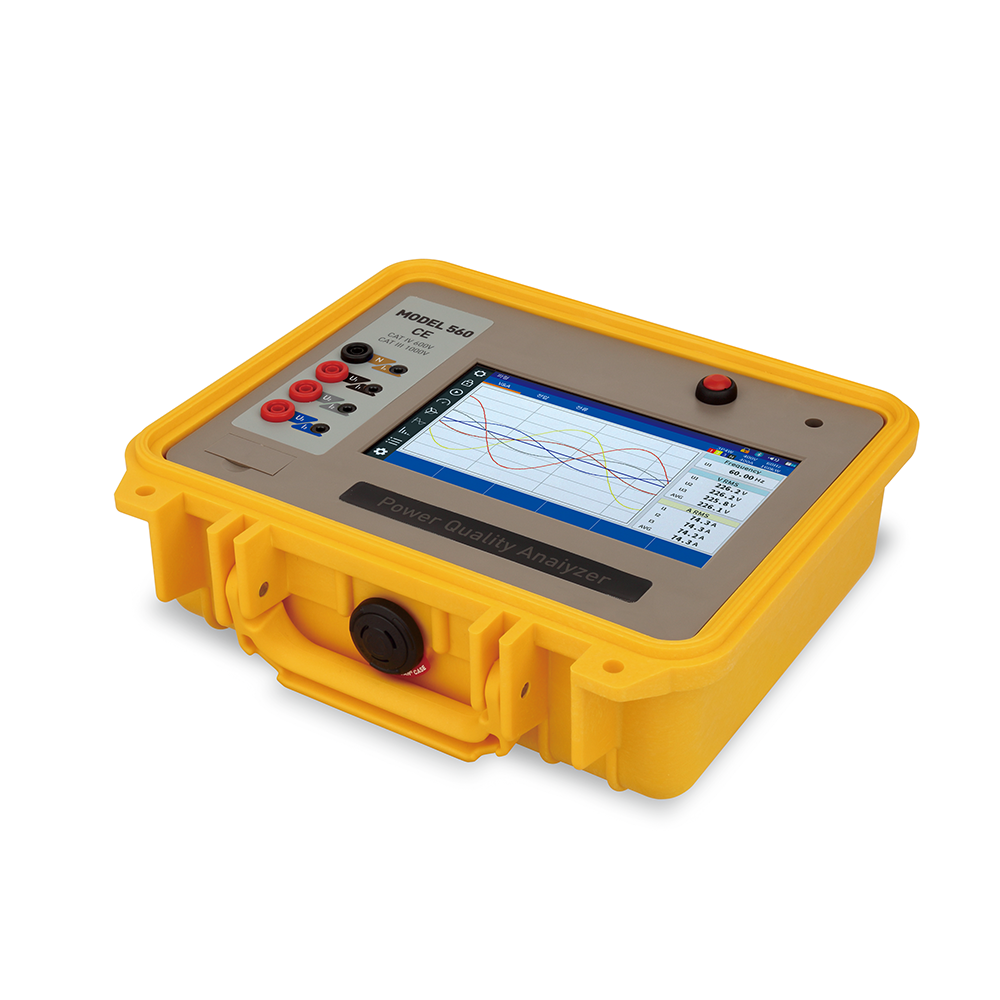

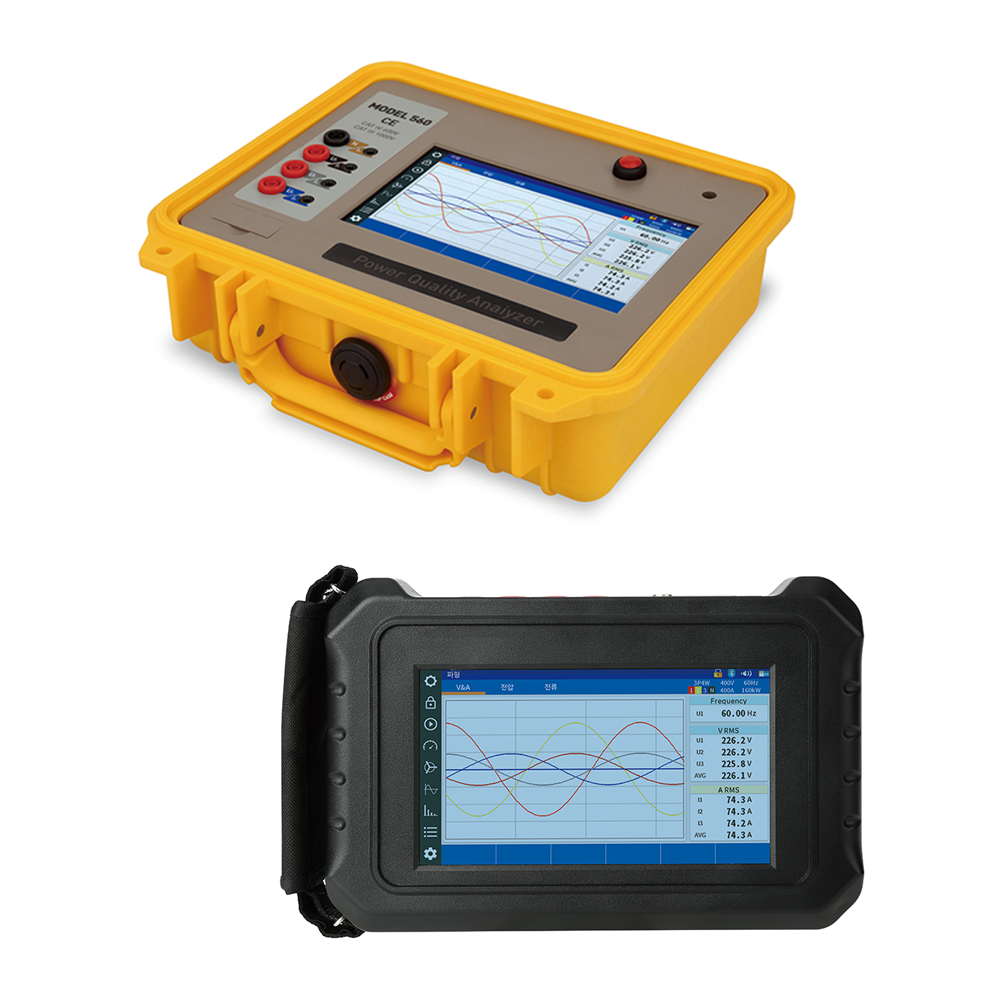

TEKON560, 570 power Quality analyzers are handheld instruments that accurately measure, diagnose and analyze electrical power characteristics
and parameters of power distribution and communication related systems. By incorporating a 7-inch wide touch screen into its lightweight design, they maximize user convenience, allowing the user to perform power quality logging and analysis.
The system allows you in the most effective and easiest manner to perform measurement, data storage, analysis and output via the 7“ wide LCD screen.

• Measuring the quality of power and electrical parameters at the same time
• Displaying how to conduct wiring and measurement on the touchscreen
• 7“ wide LCD making easier measurements and analyses
• Providing touch functions in order for the user to search/archive menus via intuitive UI
• Enabling the user to download, view and analyze stored data, and make up reports
• Providing flexible coil clamp (Rogowski coil) as basic current sensor
• Captures three-phase power quality measurements
• Simultaneously measures active/reactive/apparent power, power factor, RMS voltage/current, phase angle and neutral line current
• Supports a variety of wiring such as single-phase 2-wire, single-phase 3-wire, threephase 3-wire and three-phase 4-wire
• Displays voltage and current in waveforms and phase diagram
• EN50 160 Report Output

Product Name	Power Quality Analyzer
Brand Name	TEKON
Model No.	TEKON560	TEKON570
Color	Yellow	Black
Weight	2.3kg	900g
Size	270(L)×246(W)×124(H) mm	240(L)×160(W)×65(H) mm
Origin	Republic of Korea
