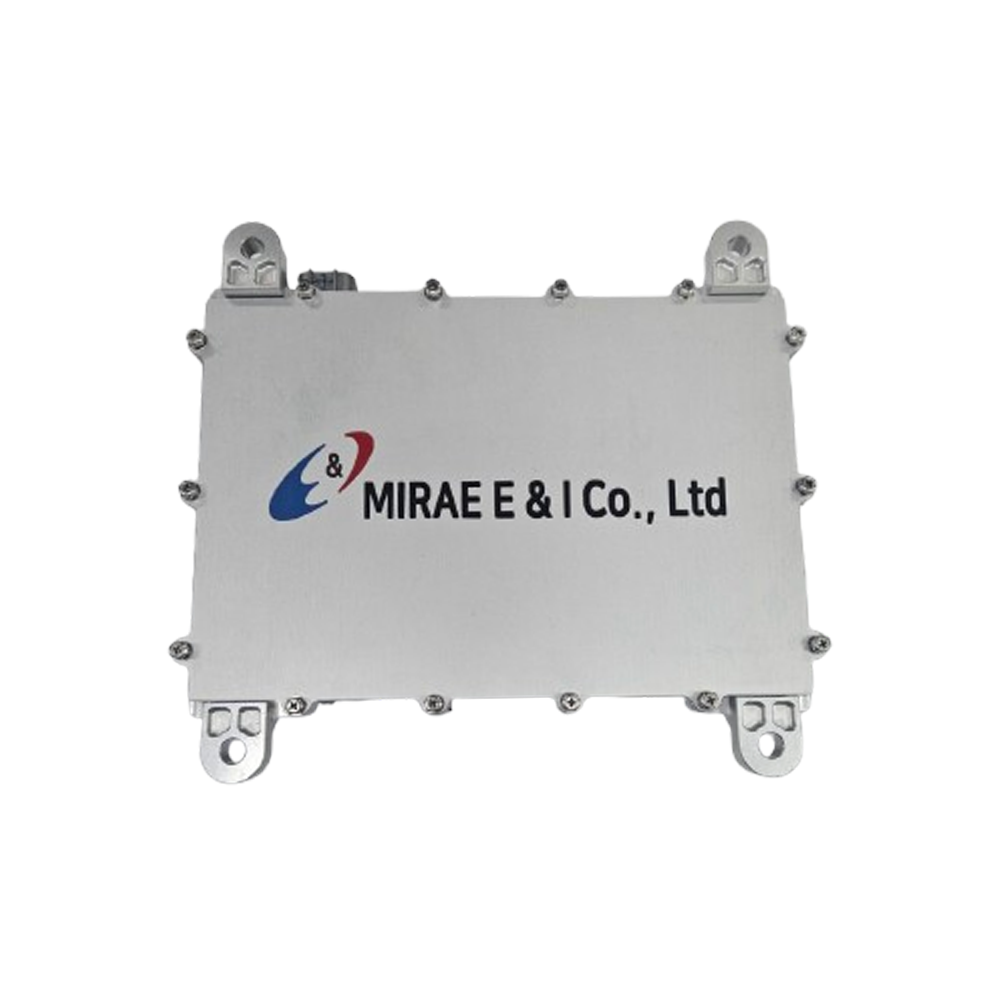

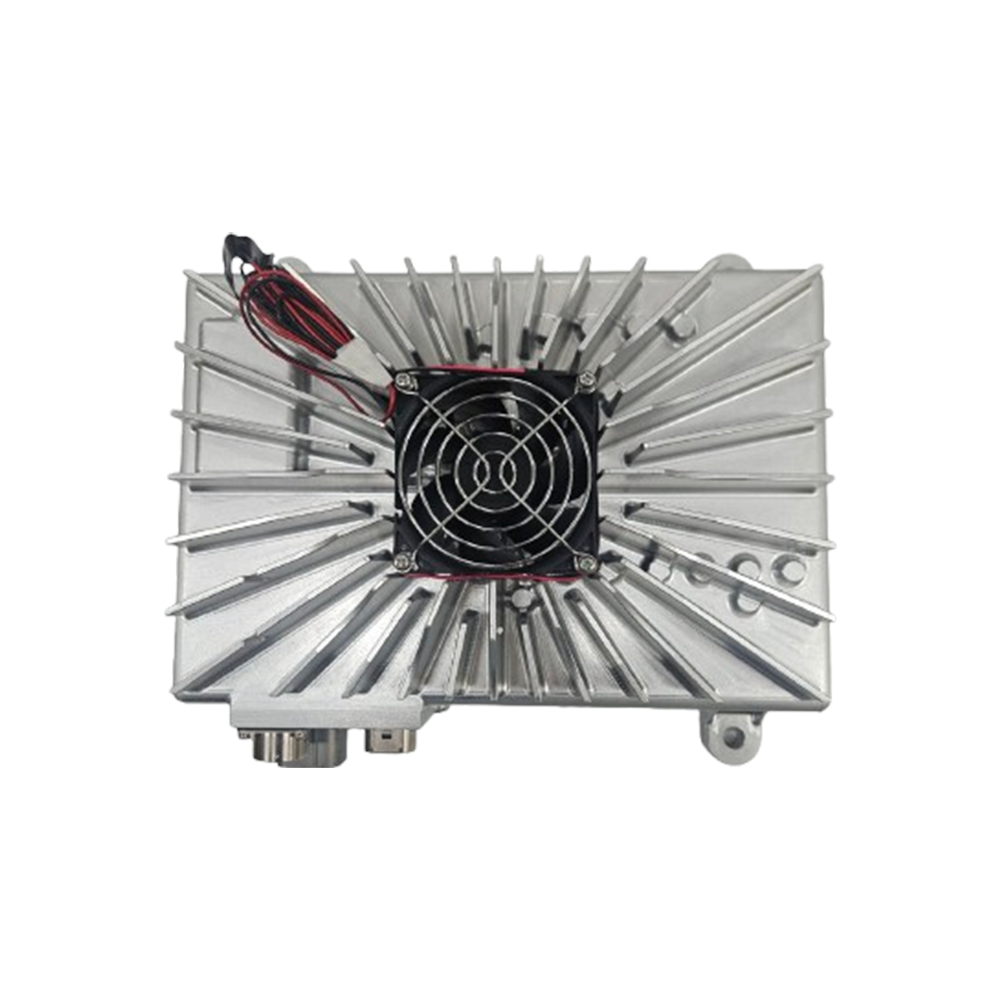

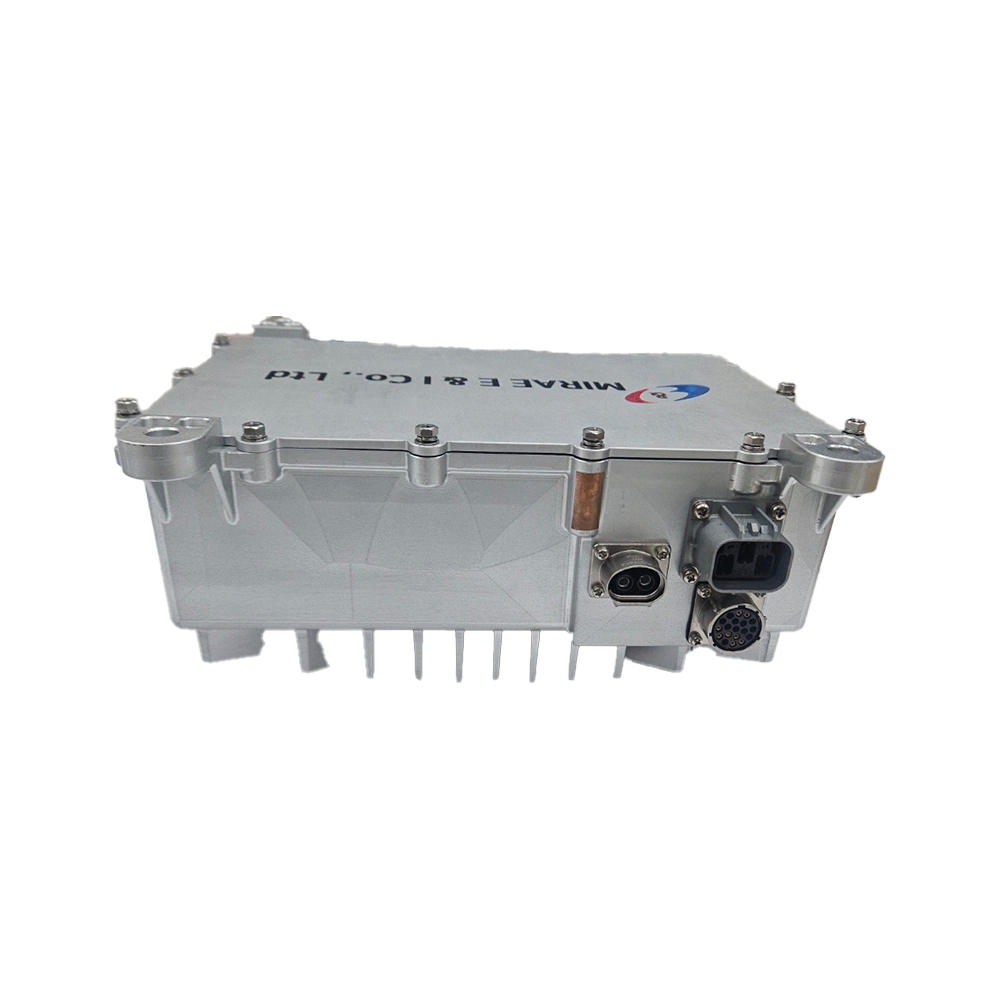

MIRAE E&I Evs 3.3kW On-Board Charger
-
Payment
O/A , T/T
-
MOQ
10 ea
-
Supply Ability
9,999,999 ea per One-Time
-
Supply Details
Customization Sample Order
Depends on quantity / If you want to buy in bulk, please contact me.
-
Country of sale
Asia, Americas, Europe, Middle East, World Wide
-
PRICE
-
FOB
Depend on quantity
-
ITEM SPECIFICS
-
Brand
Model MR-OBC_3.3kWMIRAE E&I
-
origin
Republic of Korea
-
Size(Capacity)
3.3kW
-
Function
Power conversion equipment for charging electric vehicle battery packs
-
Material
AL CASE
-
Color
Silver Anodizing
-
Dimensions
286W*319D*142H(mm)
-
Weight
Approx. 6.5kg
-
Style
For onboard installation in electric vehicles
PRODUCT DESCRIPTION
MIRAE E&I Evs 3.3kW On-Board Charger
Key Features
1. It can be manufactured with a selectable output voltage of 52V, 86V, or 144V according to the user's request.
2. Designed and engineered to allow selection between unidirectional and bidirectional operation within a single model.
3. When used as a bidirectional product, V2L (Vehicle-to-Load) and V2G (Vehicle-to-Grid) functions are available.
4. Applicable to small vehicles such as 2-seater micro electric cars, electric motorcycles, and mini electric golf carts.
2. Designed and engineered to allow selection between unidirectional and bidirectional operation within a single model.
3. When used as a bidirectional product, V2L (Vehicle-to-Load) and V2G (Vehicle-to-Grid) functions are available.
4. Applicable to small vehicles such as 2-seater micro electric cars, electric motorcycles, and mini electric golf carts.
Advantages
1. Manufactured in own factory
2. Honest price through direct production/distribution
2. Honest price through direct production/distribution
How to Use
1. Pre-check: Verify that the input/output voltage specifications and communication protocol are compatible.
2. Installation and Wiring: Input(220VAC) / Output(Connect output wires to the battery pack according to + / - polarity) / Communication Port: Connect to the vehicle or BMS via CAN communication (transmitting and receiving operational data based on the configured protocol))
3. A slow charger for home power (AC 220V) compliant with the J1772 standard is inserted into the electric vehicle charging port.
4. When the charging connector is inserted, CAN communication with the battery BMS is established to proceed with charging.
5. Charging automatically stops when 100% charge is reached.
2. Installation and Wiring: Input(220VAC) / Output(Connect output wires to the battery pack according to + / - polarity) / Communication Port: Connect to the vehicle or BMS via CAN communication (transmitting and receiving operational data based on the configured protocol))
3. A slow charger for home power (AC 220V) compliant with the J1772 standard is inserted into the electric vehicle charging port.
4. When the charging connector is inserted, CAN communication with the battery BMS is established to proceed with charging.
5. Charging automatically stops when 100% charge is reached.
Cautions
1. Before installation, the product manual and safety standards must be thoroughly reviewed.
2. The product must be used strictly within the input voltage and current ranges specified in the product specifications.
3. For electrical safety, proper grounding must be ensured at all times.
4. Communication Check: CAN communication with the BMS must be properly connected to accurately monitor the charging status.
5. If any abnormal signs such as unusual noise, smell, or overheating occur, immediately stop charging and perform an inspection.
2. The product must be used strictly within the input voltage and current ranges specified in the product specifications.
3. For electrical safety, proper grounding must be ensured at all times.
4. Communication Check: CAN communication with the BMS must be properly connected to accurately monitor the charging status.
5. If any abnormal signs such as unusual noise, smell, or overheating occur, immediately stop charging and perform an inspection.
Specifications
| Product Name | MR-OBC(3.3kW) |
| Brand Name | MIRAE E&I |
| Weight | Approx. 5600g |
| Dimension | 286W*319D*142H(mm) |
| Origin | Republic of Korea |
