AUTROL

ALT6100 Smart Level Transmitter

  • Payment
    T/T
  • MOQ
    1 ea
  • Supply Ability
    9,999,999 ea per One-Time
  • Supply Details
    Customization Sample Order

    Negotiable

  • Country of sale
    Americas, Middle East, Europe, Asia, World Wide
  • PRICE
    • EXW

      Depend on quantity

ITEM SPECIFICS

  • Brand
    AUTROL
    Model ALT6100
  • origin
    Republic of Korea
  • Size(Capacity)
    86 x 115 mm (product head only)
  • Function
    Level Measurement
  • Material
    Aluminum Alloy Housing (or 316 SST Housing) Probe, Flange : 306 or 316 SST
  • Color
    Blue + Gray Epoxy-Polyester Painted
  • Weight
    1.5 kg (Without Connection Flange & Probe, Aprox.)


PRODUCT DESCRIPTION

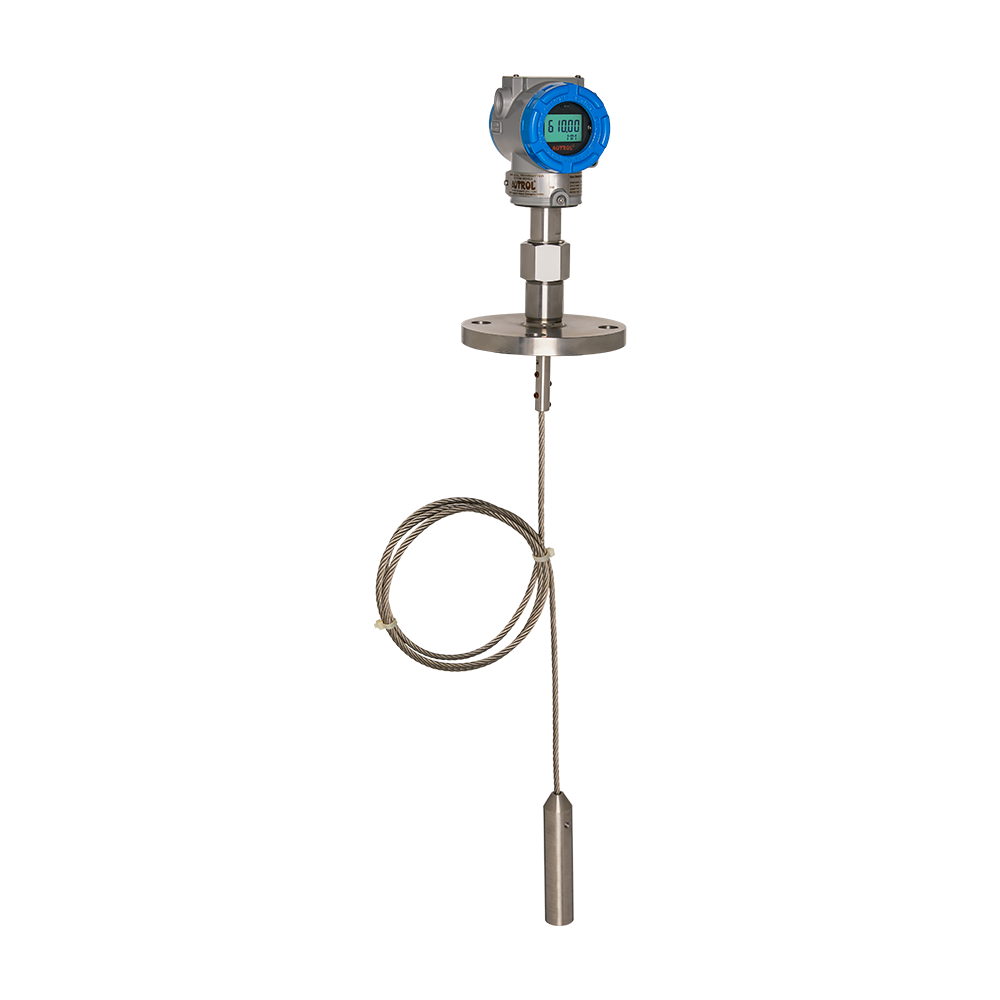

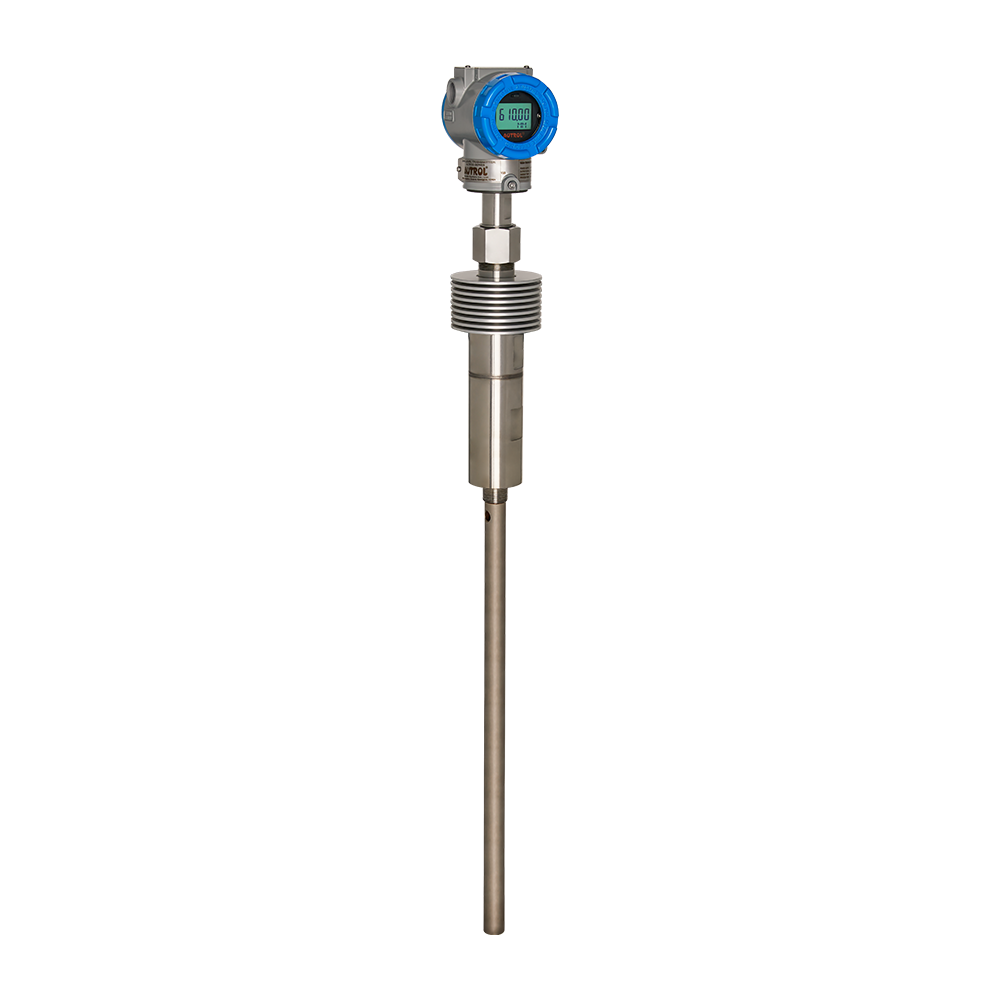

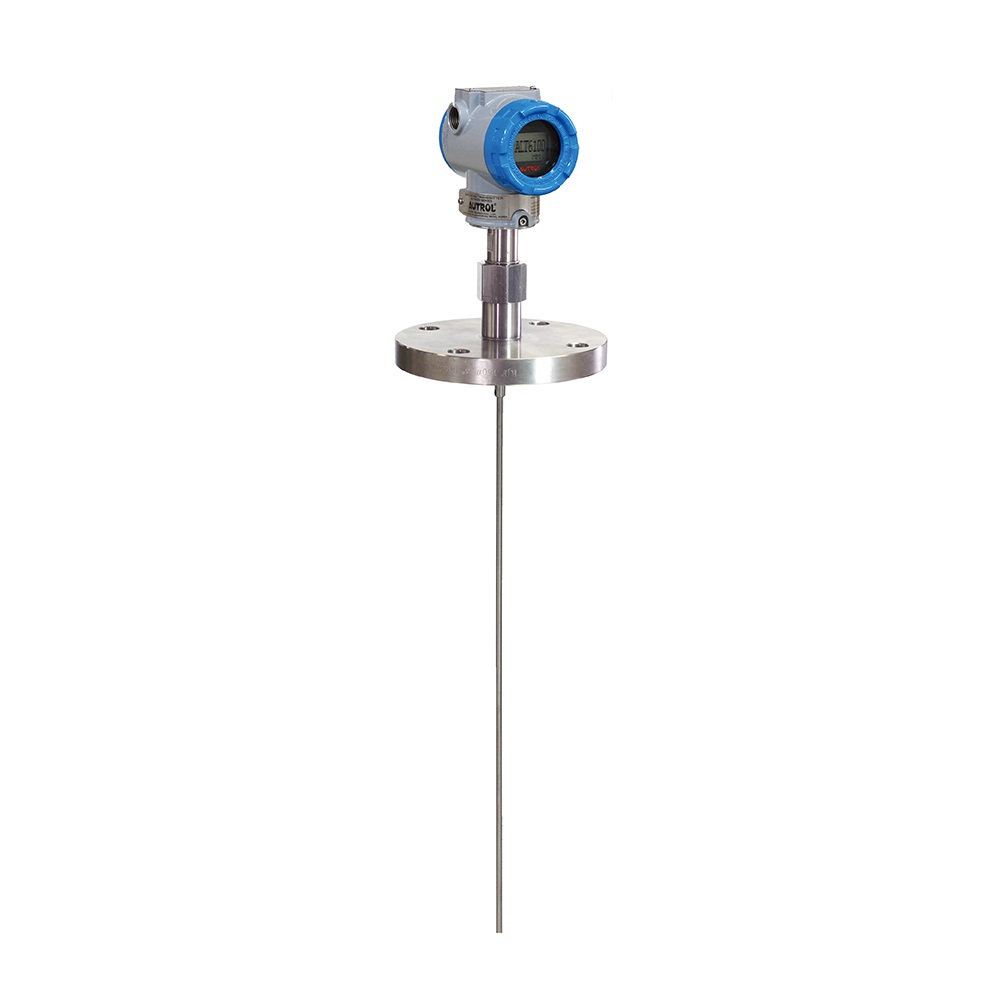

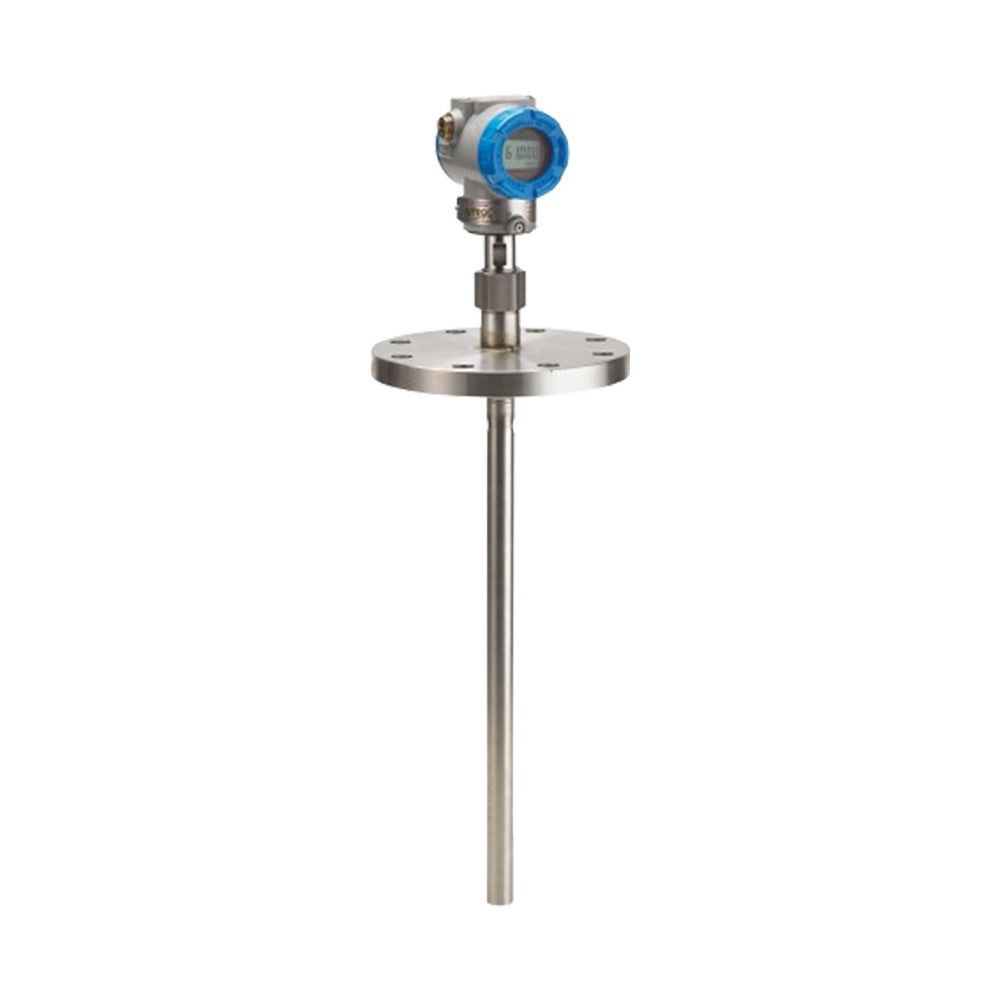

ALT6100 Smart Level Transmitter
Description of Product(Guided Wave Radar Level)
The ALT-6100 is a time domain reflectometer (TDR) configured for level sensing. It measures the round-trip time for a pulse to propagate along a transmission line (or probe) to the surface of a liquid and reflect back. The propagation time is independent of air temperature, pressure and humidity, and the precise location of the pulse reflection depends only on the location of the liquid’s surface, independent of the liquid’s dielectric constant.
Function
 · Measures accurately on materials with dielectric (Dk) as low as 1.4
 · Guided wave radar measurement for up to 3.0 mm accuracy
 · Measures level and interface on challenging applications including foam
 · Trouble-free operation since the transmitter is virtually unaffected by dust, vaper,
 · Interfering obstacles, and turbulence. It is even suitable for small or oddly shaped tanks
Applications
 · Power Plant
 · Petro-chemical
 · Water treatment plant
 · Aerospace Industry
 · Paper
 · Steel
Company Overview
Autrol Smart Transmitter products, manufactured by Duon System, harmonize with all instruments at the field. We have been finding a way to have the best measurement solution in world instruments market.

Duon System was established on May in 1989. Since then, we had successfully performed for DSC(Distribution Control System) with more than 70 projects. However, we have focused on developing Smart type, which is core part of field instruments.: Differential, Gauge, Absolute, Temperature and GWR(Guided Wave Radar) transmitters with our own technology as named Autrol.

Autrol Smart Transmitter has performed all sorts of applications at more than 45 countries successfully with high class of international quality systems in field along with universal protocol, international certificates and regulations. The results have satisfied End-users and we are very proud of both Duon System and Korea instrument market because no one had a result like Duon System for Autrol Smart Transmitter in Korea.

Duon system now, has been supplying to BMWS, BWTS, SCR, Deisel, Boiler, BOG, LNG, Fuel Measuring and etc.
