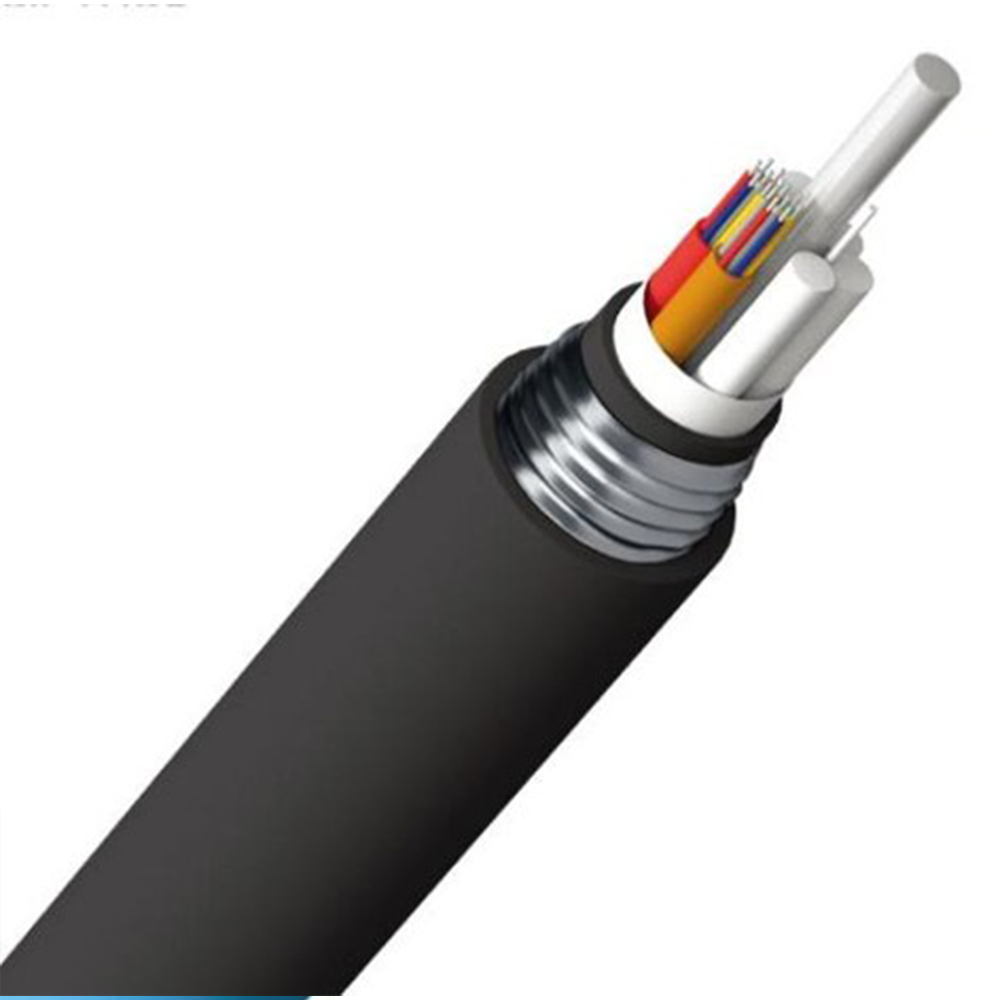

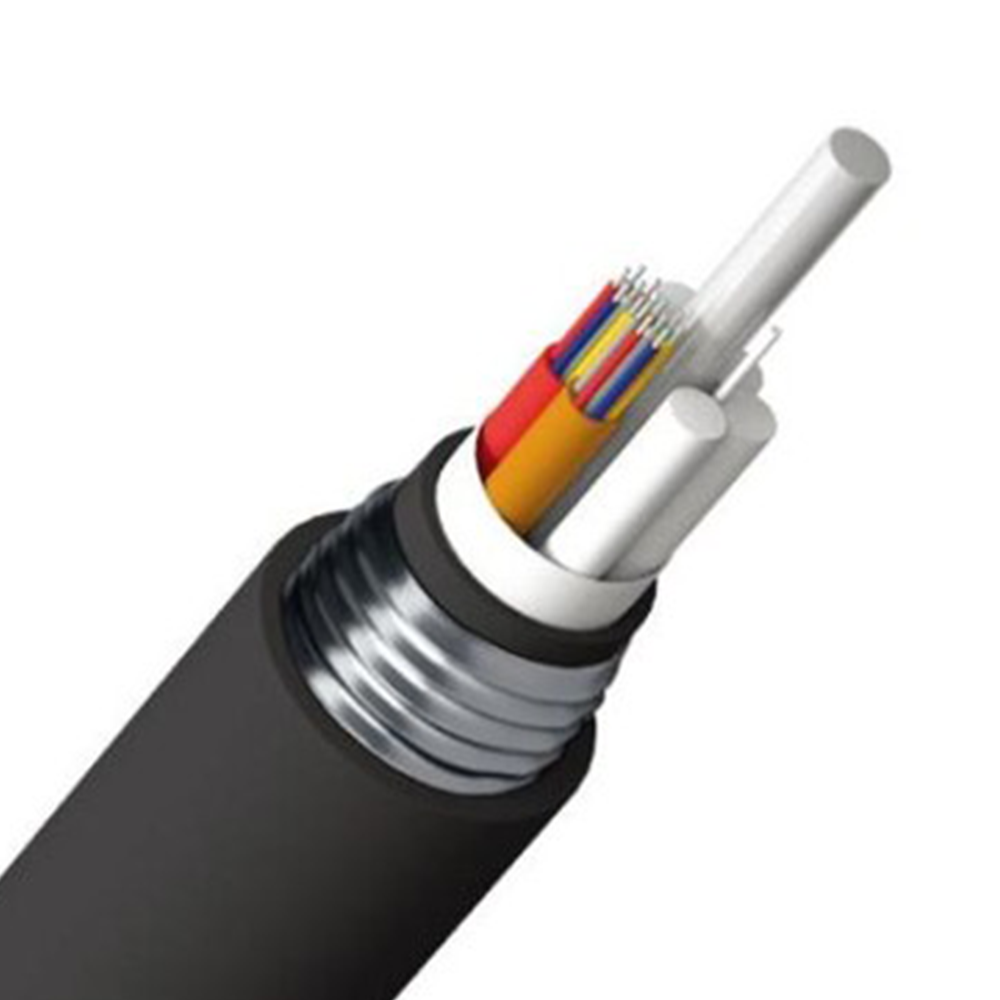

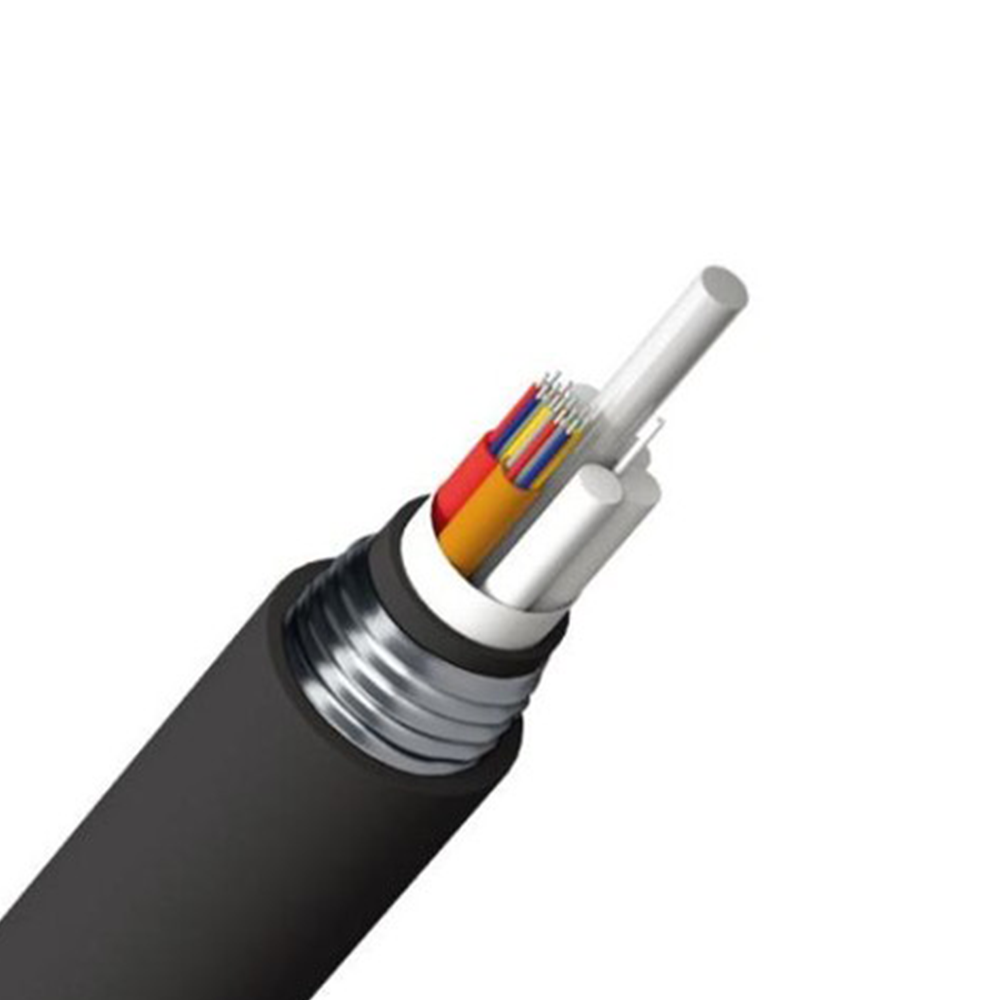

LOOSE TUBE STEEL ARMOR DOUBLE JACKET OPTICAL CABLE

• Buried in Harsh Environments
• Duct and Lashed Aerial
• Long Haul Communication Network
• Subscriber Network

• Outstanding optical fiber protection by proven loose tube design
• Available with full range of fiber types and fiber count (up to 288C)
• Available for metallic or non-metallic central strength member
• Easy to handle by dry cable core
• Enhanced compressive strength and rodent resistance
• General PE jacket or flame retardant jacket
• Colored stripe PE jackets available (if required)
• Outstanding mechanical & environmental properties

• Fiber Counts/Tube: 12
• Outer Diameter: 13.7~20.3 mm
• Weight: 170~360 kg/km

• Installation: -30°C to +60°C
• Operation: -40°C to +70°C

Fiber Counts		up to 72	96	120	144	288
Fiber Counts/Tube		12	12	12	12	12
Outer Diameter(mm)		13.7	14.9	16.2	17.7	20.3
Weight(kg/km)		170	200	230	270	360
Max. Pulling Tension(kg)		200	210	250	300	390
Min. Bend Radius(mm)	Installation	20 times of Cable outer diameter
	Operation	10 times of Cable outer diameter
Temperature	Installation	-30°C ~ +60°C
	Operation	-40°C ~ +70°C
